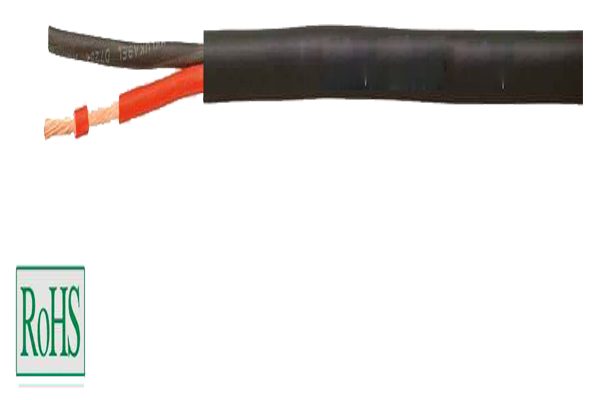

Superflex-M

Flexible Multi-Core Cables are used for Electric Power supply, Modern Electrical Appliances & Equipments etc.

Information

Technical Data
  • Operating Temp: 15°c to max.+70°C
  • Nominal voltage: 1100 V
  • Test voltage: 3000 V
  • Min. bending radius: 7 x cable diameter
  • Flame propagation: Flame retardant test as per IS 10810-53 , IEC 60332-1
Cable Structure

generally conforms to IS 694,BS 6500,IEC 60227,IEC 60228, DIN VDE 0281-5, IS 8130 & IS 5831

Conductor:
EC grade flexible copper generally conforms IEC 60228, IS 8130

Insulation / Sheath:
HR/FR/FRLS-H/ZHFR compound

Colour:
White , Black, Blue or as per party requirements

Cable features
  • Special heat resistant insulation
  • Higher current carrying capacity
  • Better compatibility of cores
  • Excellent resistant to moisture, abrasion, grace, oil.
  • Longer Flex Life
  • Generally Conforming to : IS 694, CENELEC HD 21, IEC 60227, BS 6500, DIN VDE 0281
  • Tested by SGS, EIL, RITES, NPC
Application

Superflex-M
For the wiring of all types of control panels, buildings, factories, relay racks, etc. General purpose house wire is used by electrical contractors, electricians, municipalities and all major switchboard manufacturers.

Standard length cable packing:
100, 200, 500, 1000 m in reels

Technical DataTable

Superflex-MCore colours
Superflex-M
Nominal cross sectional area of conductor Number / Nominal dia of strands Nominal insulation thickness Nominal sheath thickness in mm Max overall diameter in mm Max conductor resistance at 20°C Current rating
sqmm mm mm 2 core 3 core 4 core 5 core 2 core 3 core 4 core 5 core Ω / km Amps
0.5 16/0.2 0.6 0.9 0.9 0.9 0.9 7.2 7.6 8.2 9 39 6
0.75 24/0.2 0.6 0.9 0.9 0.9 0.9 7.8 8.2 8.8 9.6 26 9
1 32/0.2 0.6 0.9 0.9 0.9 1 8 8.6 9.4 10.5 19.5 14
1.5 30/0.25 0.6 0.9 0.9 1 1 8.6 9.2 10.5 11 13.3 18
2.5 50/0.25 0.7 1 1 1 1 10.5 11 12 13 7.98 24
4 56/0.30 0.8 1 1 1 1 12 12.5 14 15.5 4.95 32
  • All are class 5 conductor
  • HR/FR/FRLS-H/HFFR insulation or sheath is also available as per customer requirements
Core colours
2 Core cables 3 Core cables 4 Core cables 5 Core cables
Red, Black Red, Black & Green Red, Yellow, Blue & Green Red, Yellow, Blue, Black & Green
Any required colors on specific request.
