- Operating Temp: -15°c to max.+70°C
- Nominal voltage: 1100 V
- Test voltage: 3000 V
- Range of product: 1 sq. mm to 6 sq. mm
- Min. bending radius: 8 x cable diameter
- FRLS-H properties: Flame retardant test as per IS 10810-53 , IEC 60332-1
Information
generally conforms to IS 694, BS 6004, IEC 60227, DIN VDE 0281-3, IS 8130 & IS 5831
Conductor:
EC grade flexible copper, generally conforms IEC 60228, IS 8130
Insulation:
Heat resistant PVC compound with a high insulation resistance value PVC type – A
Colour:
Red, Green/Yellow, Blue, Black, Brown, Grey, Orange, White, Green, Yellow
*Any other Color on specific request can also be supplied
- Special heat resistant insulation
- Higher current carrying capacity
- Steam and boiling water resistant
- Excellent resistant to moisture, abrasion, grace, oil
- Longer Flex Life
- Excellent mechanical & electrical properties
- Generally Conforming to : IS 694, CENELEC HD 21, IEC 60227, BS 6004, DIN VDE 0281
- Tested by SGS, EIL, RITES, NPC

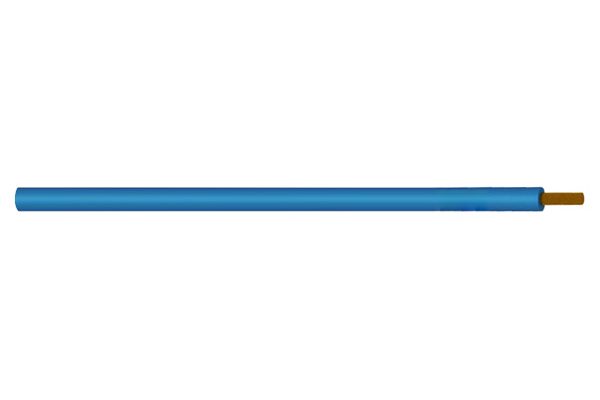

Homeflex
Fixed installation in conduits and under plaster, for appliance wiring and distribution stations
Standard length cable packing:
Coils 90 and 180 m in carton boxes, reels
